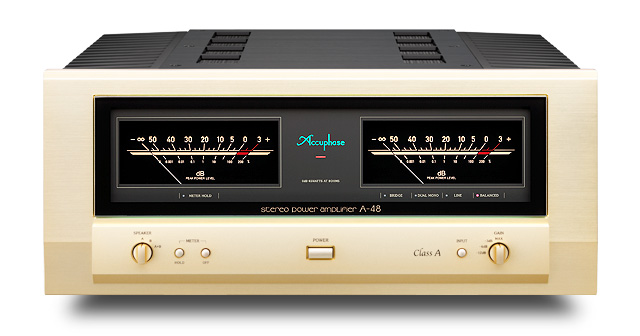

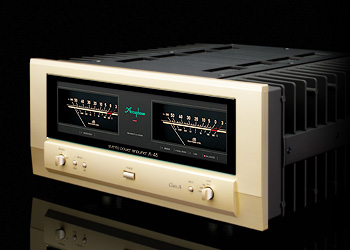

STEREO POWER AMPLIFIERA-48

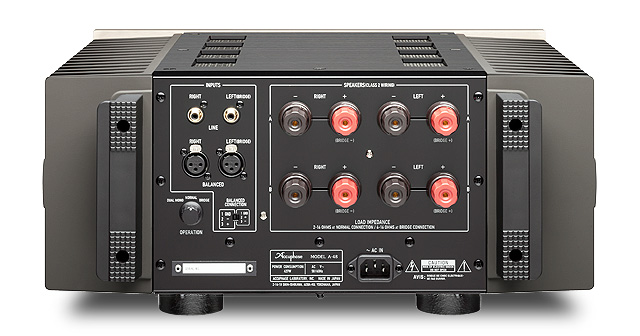

A-48A-48 Backview

Featuring a six-fold parallel push-pull architecture with power MOS-FETs, as well as ideal gain allocation realized with discrete semiconductors in an instrumentation amplifier configuration, the A-48 harnesses a wealth of advanced technology. Its outstanding performance is exemplified by a signal/noise ratio of 117 dB, output of 360 watts into 1 ohm (music signals), and a damping factor of 800. The newly designed output protection circuit can detect any short-circuiting of the speaker terminals, for complete peace of mind. This power amplifier is the ultimate instrument for immersive music appreciation on the highest level.

  • Power MOS-FETs in 6-parallel push-pull configuration
  • Linear output characteristics over entire load impedance range
  • Strong power supply with massive toroidal transformer and large 60,000 μF filtering capacitors
  • Instrumentation amplifier principle
  • High-gain signal input section in discrete configuration
  • Dedicated power supply for signal input section
  • Polarity switching for balanced input connectors
  • MCS+ circuit topologys
  • Current feedback principle in amplification circuitry
  • Protection circuitry using MOS-FET switches
  • High damping factor of 800
  • Speaker output protection circuit guards against short-circuiting
  • Two sets of large speaker terminals
  • 4-step gain control
  • Support for bi-amping and bridged mode
  • Aluminum top plate with hairline finish
Specifications and design subject to change without notice for improvements.
