DAC-20
Digital inputsDAC-20
DAC-20 is a D/A converter board with coaxial and optical fiber inputs. It is designed for installation in a slot on the rear panel of an analog Accuphase component, to provide direct input capability for signals from digital components. Usage details of the board will differ, depending on the Accuphase component in which the board is installed. To ensure correct operation, please refer to the instruction manual of the respective Accuphase component before use.
Guaranteed specifications
- Input format： JEITA CP-1212/IEC60958/AES-3 compliant
- Sampling frequency： 32kHz ~ 96kHz，24bit
- Digital inputs： COAXIAL 0.5Vp-p 75Ω
OPTICAL -27 ~ -15dBm
Block diagram of MDS++ converter

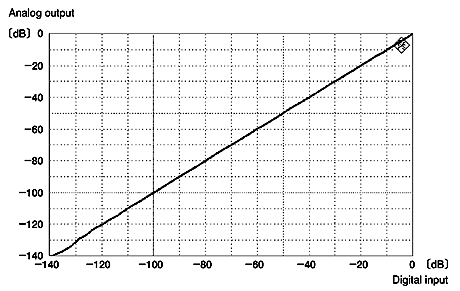

Linearity characteristic

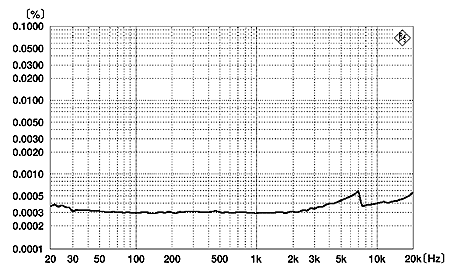

THD+Noise vs Frequency characteristic
Specifications and design subject to change without notice for improvements.
