The digital output of this CD transport unit features an HPC optical link
(ultra high-speed optical link with transfer rate of 150MBPS) as well as
HPC balanced connectors (conforming to professional ABS/EBU standards).
This assures signal transmission of impeccable quality.
The chassis is made from highly rigid 8-mm solid aluminum capable
of absorbing any kind of vibration.
Utterly stable signal is assured by the auto-lock mechanism that prevents trey resonance, and the balanced drive circuitry prevents drive currents from reaching the ground line.
Since the DP-90 has digital output only, it must be used in conjunction with digital processor. |
|

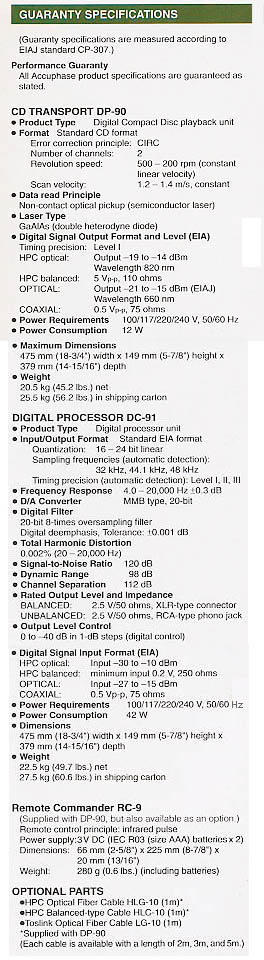

 Product type : Digital Compact Disc playback unit |
| Format : Standard CD format |
| Digital signal output : HPC Optical(-19 to -14dBm),HPC Balanced(5 V p-p),Optical(-21
to -15dBm),Coaxial(0.5 V p-p) |
|
 |
|
|
|
|
|

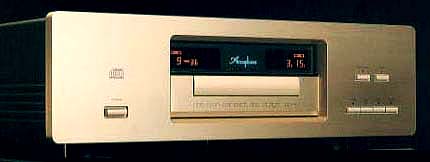

CD Transport DP-90
