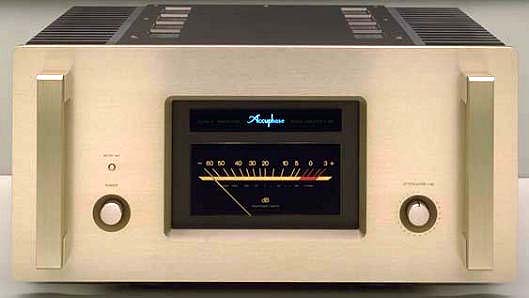

 Class-A Monophonic Power Amplifier A-100
|
|
|
The result of an uncompromising quest for musical excellence, this pure Class-A monophonic power amplifier uses a MOSFET output stage and an all-stage push-pull bridged configuration.
The balanced signal transmission principle is maintained throughout, resulting in clean and powerful speaker drive capability.
Output is 50 watts into 16 ohms, 100 watts into 8 ohms, 200 watts into 4 ohms, and 400 watts into 2 ohms. As this ideal power progression shows, the amplifier approaches the theoretical limits of physical performance.
Since Class-A amplifiers can run hot, extra large heat sinks provide effective natural cooling and ensure perfect operation stability. All parts are made only of choice materials, and the extremely sturdy chassis effortlessly absorbs any acoustical energy produced by the speakers.
|
 Rated output : 100 watts (into 8 ohms, 20-20,000 Hz, THD below 0.01%) ; 200 watts (4 ohms); 400 watts (2 ohms); 560 watts (1ohm) |
| Intermoduration distortion : less than 0.0003% |
| Damping factor : 250 (EIA,50 Hz) |
| S/N ratio : better than 117 dB (A-weighting) |
| Rated input sensitivity: 1.13 V |
|
|
|
|
|
|
|
