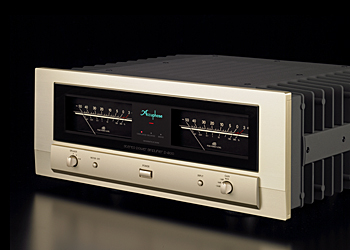

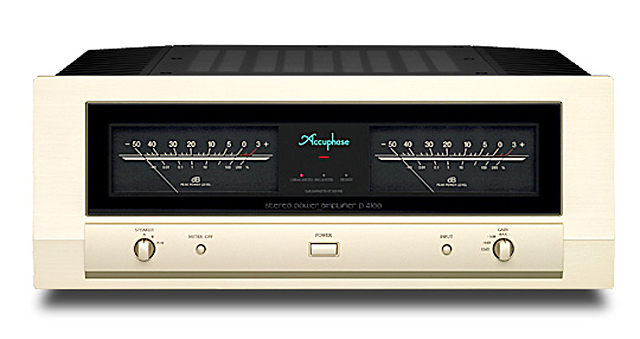

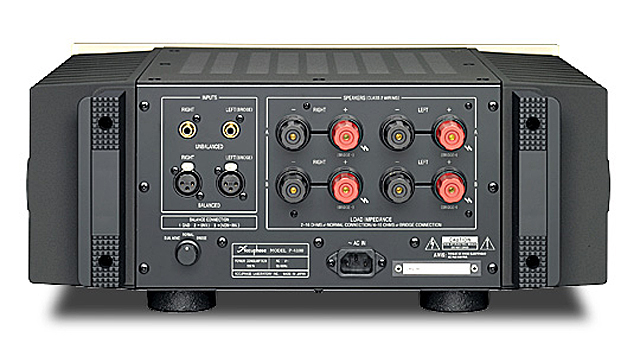

The P-4100 is a stereo power amplifier that takes sophisticated sound to
the next level. While inheriting design technology from highly renowned
Accuphase models such as the P-7100 and M-6000, the new model features
instrumentation amplifier topology and a refined MCS+ circuit to lower
the noise floor even further. Only specially selected top-grade materials
and parts are used throughout with impressive results.
The overall configuration of the P-4100 employs the latest instrumentation
amplifier principle, allowing fully balanced signal paths throughout. In
addition, the power amplifier section features refined MCS+ topology in
combination with current feedback, for further enhanced electrical performance
characteristics.
|
|
|
Output stage with 3-parallel push-pull configuration for each channel delivers
high power and handles very low impedance loads |
|
|
Instrumentation amplifier principle used for signal paths |
|
|
Further refined MCS+ circuit topology |
|
|
Current feedback circuit combines excellent sound quality with total operation
stability |
|
|
Bridged connection mode allows upgrading to monophonic amplifier |
|
|
Massive toroidal transformer rated for 950 VA |
|
|
4-step gain control |
Stereo Power Amplifier P-4100
